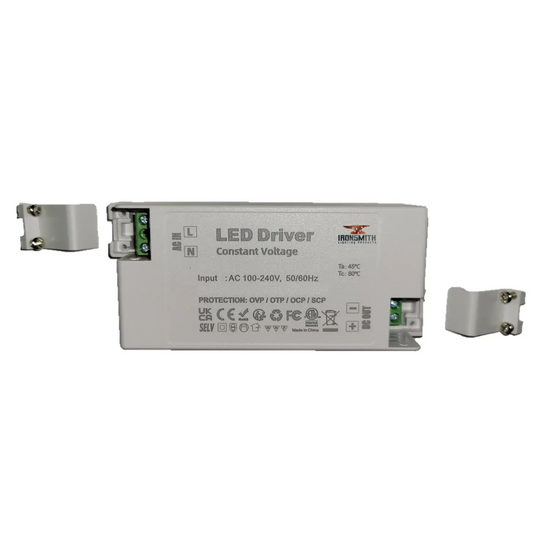

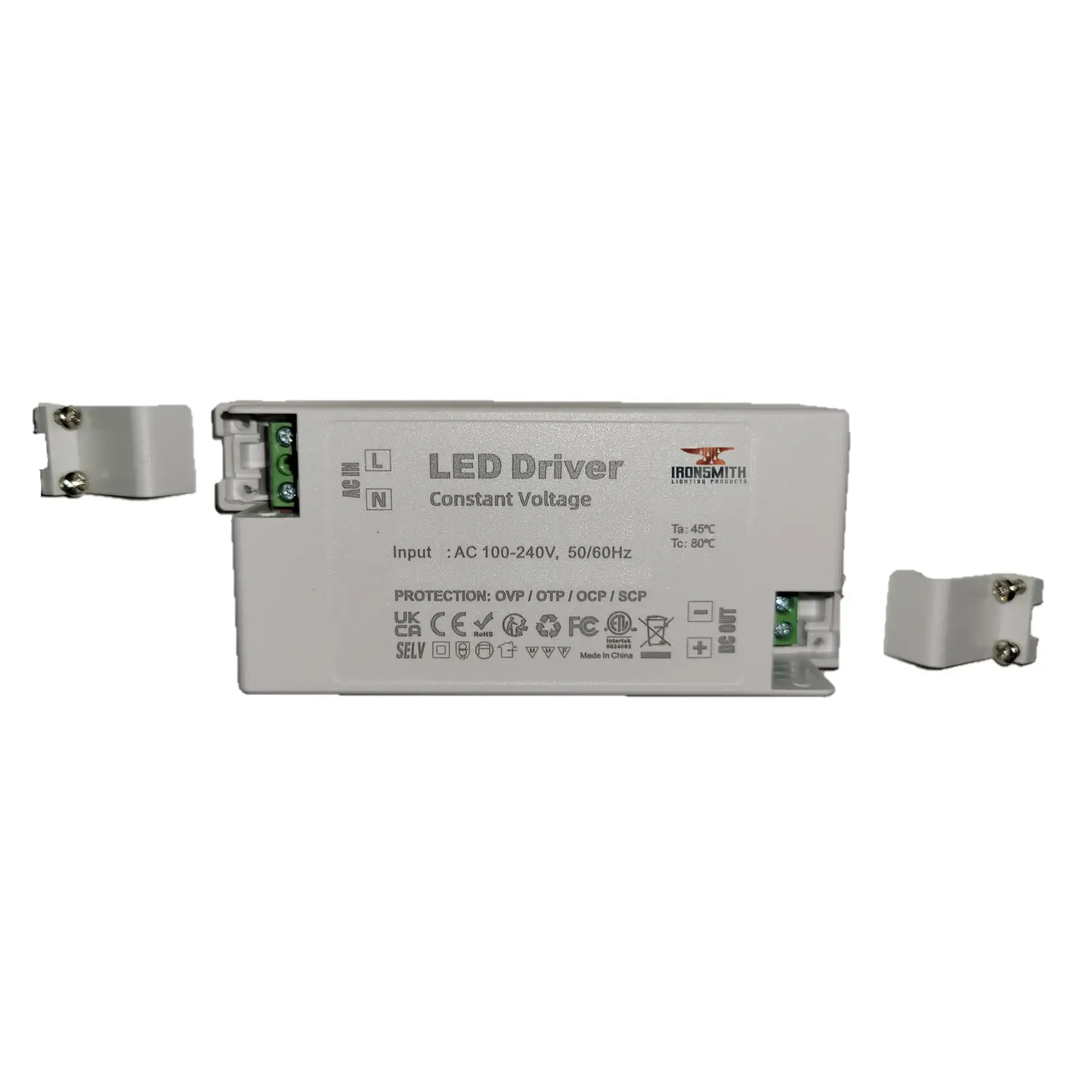

LED driver 12v is a type of transformer and electrical device which are used to regulate power to LED's, string lights, sign lights and other electrically powered devices.
LED driver 12v models are available in a wide range of configurations and sizes to help accommodate the todays all types of DIY projects and new fixtures designs.
Key Features
Input Voltage Range: Accepts 100-240 Volts (AC), converted to a steady 12 Volts (DC) output.
Output Voltage: Provides a consistent 12 Volts (DC) for reliable LED performance.
Dimmable: Offers smooth dimming from 100% to 1% without flickering, achieved by reducing current or using Pulse Width Modulation (PWM).
Pulse Width Modulation (PWM): Adjusts brightness using a rectangular waveform with a variable positive duty cycle for proportional brightness control.
Quality Construction: Made with high-quality components for durability and reliability.
Specifications
Input Voltage: 100-240V AC
Output Voltage: 12V DC
Dimensions: 3.00" L x 1.50" W x 0.88" H
Dimming: 100% to 1% dimming range, flicker-free
Application: Ideal for low-voltage DC-powered LED lighting setups requiring smooth dimming.
Safety Note
Before integrating the LED driver into your circuit, verify the LED's input requirements to ensure compatibility and safe operation.
Whenever working with electrical parts and fixtures, prioritize safety by turning off the power to prevent accidents.
